Product Overview
The small turntable drone countermeasures equipment is equipped with the functions of intercepting, driving away and forcing down the black-flying drones. The application of ultra-high frequency sweeping technology to transmit a variety of broadband signals, for the current market mainstream drone remote control, video transmission, positioning band for effective suppression, forcing the drone to lose control, resulting in the occurrence of its return, forced landing and other effects.
The use of small turntable drone countermeasures equipment can realize ultra-long-distance electronic combat, than portable and small fixed equipment to achieve a longer countermeasures distance, to achieve better countermeasures effect. The equipment can be interconnected with the monitoring and management platform software, radar, optoelectronic and other equipment, according to the needs of hierarchical control, to realize the intrusion of the drone accurate positioning, tracking, drive away and forced landing. The equipment is suitable for military bases, oil fields and oil depots, warships and a series of important security sites.
Product features
◎ Jamming frequency fully covers the remote control, video transmission and positioning frequency bands of mainstream drone products.；
◎ Adopt high gain directional antenna, accurate positioning, small radiation to the operator；
◎ Reserved detection device interface, can be extended to use the linkage；
◎ 7x24 hours, depending on the scenario and level of defense；
◎ The motor can realize forward and reverse 360° rotation, which can be used for long-distance countermeasures against drones in different directions；
Product Parameters
1. Frequency bands and power
| No. | frequency band | single circuit power | Q’ty | total power |
| 1 | 400M (400-450MHz) | 100W | 1 | 100W |
| 2 | 900M (840-930MHz) | 100W | 1 | 100W |
| 3 | 1.1G (1000-1200MHz) | 50W | 1 | 50W |
| 4 | 1.2G (1200-1400MHz) | 100W | 1 | 100W |
| 4 | 1.4G (1400-1500MHz) | 50W | 1 | 50W |
| 6 | 1.5G (1520-1630MHz) | 50W | 1 | 50W |
| 7 | 2.4G(2370-2500MHz) | 100W | 1 | 100W |
| 8 | 5.2G(5150-5350MHz) | 50W | 1 | 50W |
| 9 | 5.6G(5550-5750MHz) | 50W | 1 | 50W |
| 10 | 5.8G(5720-5850MHz) | 100W | 1 | 100W |
| jamming distance :1-3km | ||||
2. Safety and standards
| No. | Index | Parameter | Remark |
| 1 | model | SZSRYFZ-XZT-10 |
|
| 2 | protection level | IP66 |
|
| 3 | vibration and shock | GJB150.16A-2009；GJB150.18A-2009 |
|
3. Electrical standards
| No. | Index | Parameter | Remark |
| 1 | output power | 750 W |
|
| 2 | power supply | AC 220V |
|
| 3 | power consumption | ≤2100W( Includes turntable and jammer ) |
|
4 .Mechanical parameters
| No. | Index | Parameter | Remark |
| 1 | size | L 705*W 388*H 658 mm ( Includes base ) |
|
| 2 | weight | 60.4 KG |
|
5. Environmental adaptability
| No. | Index | Parameter | Remark |
| 1 | working temperature | －20℃～＋70℃ |
|
| 2 | storage temperature | －40℃～＋75℃ |
|
| 3 | relative humidity | 最湿月月平均最大相对湿度≤95% (该月月平均最低温度为25℃) |
|
It can transmit more than ten frequency band signals at the same time to interfere with the drone's wireless control link, GPS link and wireless mapping signal.

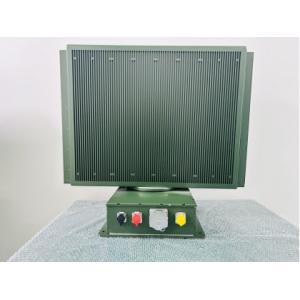

Product Dispaly
packing list
| No. | Items | Q’ty | Unit |
| 1 | Mainframe (with turntable) | 1 | set |
| 2 | handle controller | 1 | set |
| 3 | network cable | 1 | pcs |
| 4 | DC28 , AC220 power cable | 2 | pcs |
| 5 | power supply | 1 | set |
Before you start using it, please check if all the above items are included in the equipment package. If any are missing, please contact us.
Operating Instructions
l Turntable type drone countermeasures equipment has a variety of drones using frequency bands to countermeasure drones; the antenna and the module are integrated design, in the process of using, you can use the corresponding frequency bands to countermeasure drones as needed.
l operating procedure:
Step 1: Install the mainframe and power supply
Step 2: access the handle controller, motor rotation control wire, power cord
Step 3: the corresponding countermeasure band can be selected on the joystick controller
l band description:
a) Forced landing of DJI-type drones: choose 1.5G, 2.4G, 5.8G；
b) Drive away DJI-type drones: choose 2.4G, 5.8G；
c) Forced landing of Autel-type drones:choose 1.5G, 2.4G, 5.8G；
d) Drive away Autel-type drones:choose 2.4G,5.8G；
e) 900M remote control is a common remote control band for industrial-grade drones, such as common police-grade drones, customized drones, and large-class drones；
f) 1.2G is China's self-developed BeiDou navigation system, which will also be used in the drone industry in the future, as a second positioning system to 1.5G (GPS), which is currently in the published data.
g) 1.5G (GPS) as a common positioning and navigation signal for drones nowadays
h) 2.4G is the main remote control band for drones nowadays, and it is the most mature technology and most widely used
i) 5.2G is now one of the main image transmissions for the new generation of drones with some remote control signals
j) 5.8G is currently the most dominant signal, but also the most mature technology and the most widely used.
k) Other special frequency bands can be used together according to the actual situation
|
|
